Powder Metallurgy

Powder  Metallurgy


In powder metallurgy process (PM), fine powders of metals and alloys are compacted together by pressing the powder in a mould or die to control the shape of the finished product. The pressure used for compaction are high so that the metal or alloy particles get mechanically interlocked. The part also develops enough strength, so that it may be taken out of the die or mould cavity without damage or crumbling back to powder form. The product of this compaction process is known as ‘‘green compact’’. Its strength is low, and its density is below that of corresponding solid metal or alloy. It is also somewhat porous. To produce useful strength level, the green compact is sintered at a high temperature but below the melting point of the powder-metal in a neutral or reducing atmosphere. An exchange of atoms between individual particles welds them together into a slightly porous piece of metal of the approx. shape and size of the die or mould cavity. The sintered component may be used as such or may undergo some secondary operations before being used.

Now we shall discuss, in some detail, the various steps involved in making PM components:


Metal  powder  production:

Metal powders can be produced in several ways of which atomisation is the most important. In this process, metal or alloy is heated until it melts. The molten metal is then gravity fed through a nozzle where it is impinged with a high velocity stream of water, air or nitrogen atomising it. Upon solidification, the atomised particles of metal or alloys are of various shapes and sizes. These may have to be pulverised to a fine powder of size below 100 microns.



 Blending:

Blending means agitation of powder for homogenizing the particle sizes. While blending some lubricants are also added so that during the next operation of compacting, the die wear and the friction between the metal particles may be reduced. Usual lubricants used are powdered graphite or lithium stearate. Blending is usually done dry—no water is added.


 Compacting:

After blending, the powders are placed in a die and compacted by pushing a punch in under pressure. The dies are usually made of tungsten carbide to reduce wear of the die. The use of lubricants is necessary to reduce wear of dies and to reduce compacting force and in order that the density of ‘‘green compact’’ is almost as high as the density of solid metal. Ejection of green compact from the die also becomes easier with the use of lubricants. Compacting requires high pressures of the order of 700 MPa to cause mechanical interlocking in particles.

Before sintering, however, the lubricant must be driven out by a low temperature heating cycle.


Sintering:

This is the next step in PM process. The green compacts are heated in a muffle type furnace in a controlled atmosphere. For ferrous metals, a dissociated ammonia atmosphere is used to control carburization or decarburization of the powder compact. Temperatures are maintained between 60–80% of the melting point of metal or alloy concerned. Sintering time may range from 20 minutes to 60 minutes. Sintering raises the ultimate strength of the product. It results in diffusion bonding of particles.



Advantages  of  powder  metallurgy  process:

The main advantage of PM process is that accurate control over powder can be exercised permitting variation in physical and mechanical properties. If so desired a part can be made with different densities in different portions of the same part. Parts can be made in different shapes accurately so that no subsequent machining is required. Small gears, parts with spline or irregular shapes can be produced cheaply and accurately. PM process is metal and energy efficient. PM parts are also relatively free from defects. Main disadvantage is that initial tooling costs are high and it cannot produce parts with weak thin sections.


Applications:

Powder metallurgy is used in the manufacture of parts for: Automobile industry: motors, gear assemblies, brake pads Abrasives: polishing and grinding wheels

Manufacturing:  cutting  and  drilling tools (using  hard  metals)

Electric and magnetic devices: magnets, soft magnetic cores, batteries Medical and dental: prostheses, amalgams

Aerospace: motors, heat shields, structural parts Welding: solder, electrodes

Energy:  electrodes,  fuel cells

Other:  porous  filters,  bearings,  sporting  goods  etc.







Moulding of Plastics and Power Metallurgy


 PLASTIC:  Introduction:


Plastic or Polymers are classified into two categories:

1. Thermoplastics

2.  Thermosets


Thermoplastics:

Thermoplastic polymers soften when heated and can be reshaped, the new shape being retained on cooling. The process can be repeated many times by alternate heating and cooling with minimal degradation of the polymer structure.

Thermosets:

Thermosetting polymers (or thermosets) cannot be softened and reshaped by heating. They are plastic and moldable at some state of processing, but finally set to a rigid solid and cannot be resoftened. Thermosets are generally stronger and stiffer than thermoplastic.


Plastic  Processing:


Though there are a wide variety of plastic product manufacturing processes in use, the discussion of all of them is beyond the scope of this book. We shall describe three common methods. These are

(i) Injection moulding,
(ii) Extrusion, and

(iii) Blow moulding.

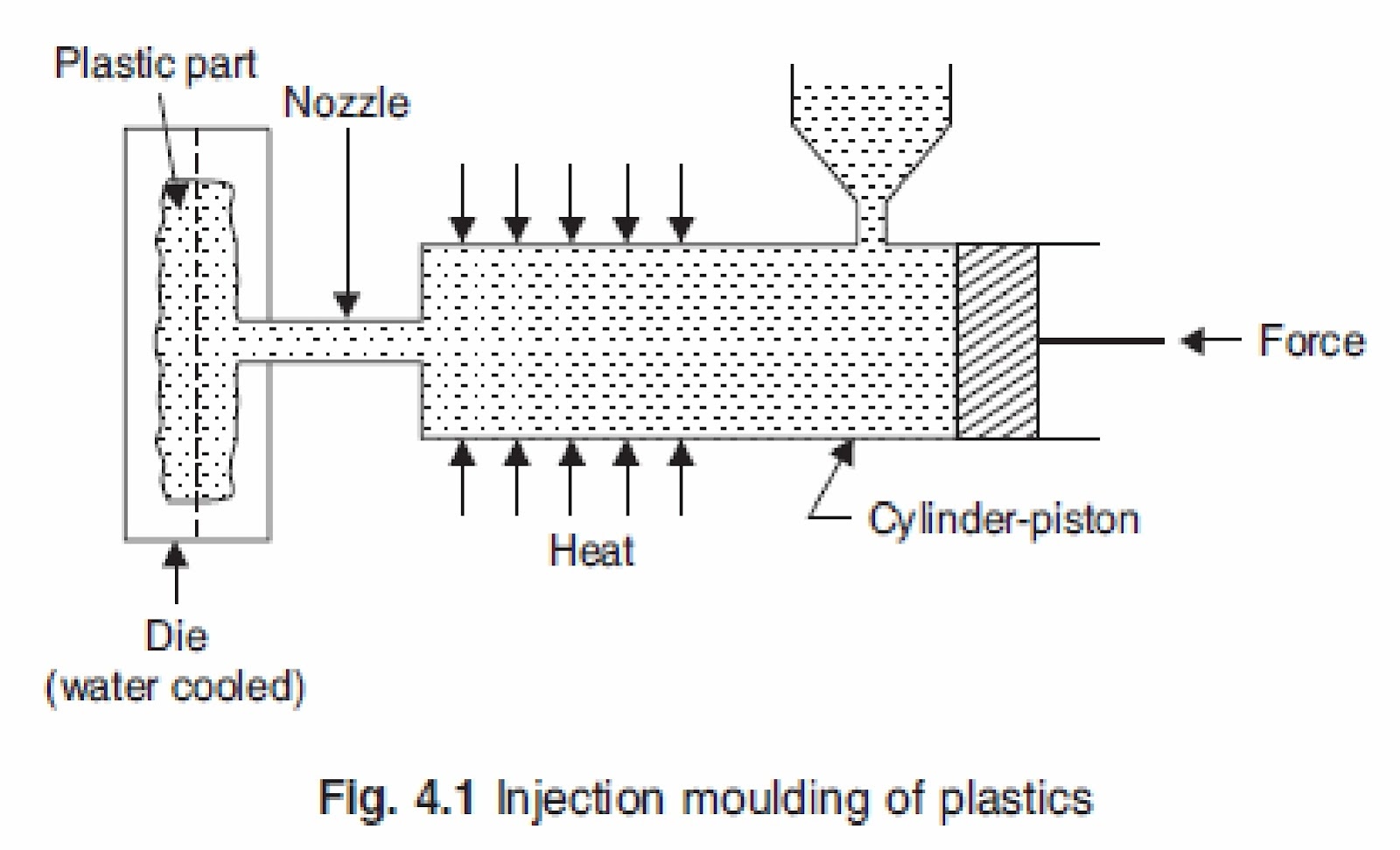

 Injection  moulding:


This is the method used for large scale production of thermoplastics components. The plastic-powder is filled into a hopper connected to a cylinder-piston mechanism. As the piston withdraws, some plastic powder is inducted into the cylinder and the piston then moves it forward by exerting pressure on it. The cylinder is heated so that the plastic powder gets heated to a temperature between 175–275°C. Under the action of heat and pressure, the plastic softens and is forced through a nozzle into a water cooled die.

After the plastic part has cooled and solidified, it is ejected out of the die and the cycle starts all over again.


Extrusion:


This process is also called extrusion moulding. This method is also suitable for thermoplastics, thermosetting plastics are generally not suitable for extrusion. By extrusion, solid rods, pipes, tubing and different sections can be made. A hopper feeds polymer material into a chamber, which is kept heated. A screw rotates in the centre of this chamber feeding the polymer material forward. Under the action of heat and pressure, it starts flowing. In the front portion of the chamber, a (heated) die is fitted, which provides the only exit for the material. As more and more material is screw fed, a continuous stream of material is squeezed out from the die, its cross-section acquiring the shape of the die. The material coming out of the die is cooled and carried off by a suitable belt conveyer. The scheme of extrusion process is shown in Fig.4.2







Blow  moulding:


This process has been used for making plastic bottles, toys, hollow dolls and similar other items. The blow moulding begins with a heated tubular piece of plastic, which is called PARISON. The parison is positioned in between a two piece mould as shown in Fig. 4.3.




The bottom opening of the parison gets pinch closed and sealed as the two piece mould closes. Air is then injected into the parison under pressure (0.7–10 kg/cm2) thereby forcing the plastic to acquire the shape of the mould. The mould is opened and the part formed inside the mould is removed after it has cooled sufficiently. The above process is similar to making articles of glass by blowing air into a mass of molten glass.








Sunday, August 12, 2012

Casting process(part 1)


Theory:

             Casting process is based on the property of a liquid to take up the shape of vessel containing it. Molten metal poured into a mould flows into the corners and fills all the voids. When metal solidifies it takes the shape of mould but not exactly the same because solid being demos there is reduction of volume. A foundry is a collection of the necessary materials or equipments to produce a casting. Practically all metals are initially cast. The casting process involves the following basic steps.
       1)     Pattern making
       2)     Mould making
       3)     Melting the metal
       4)     Pouring it into the cavity
       5)     Allowing the molten metal cold and solidify it the mould
       6)     Removing the solidified component, cleaning it and subjecting it for further treatment if necessary.
            One of the most attractive features of casting is its ability to form any shape in one operation. Casting is one of the most versatile forms of mechanical process for producing components; because there is no limit to the size, shape and intricacy of the articles that can be produced by casting. It offers one of the cheapest methods and gives high strength and rigidity even to intricate pasts, which are difficult to produce by other methods of manufacturing.

Types of Casting Methods:

   1)   Casting in metallic moulds
1.      Permanent mould casting
2.      Stush casting
3.      Press casting
4.      Die casting




   2)   Casting in non-metallic moulds
1.     Centrifugal casting
a)      True centrifugal
b)     Semi centrifugal
c)      Centrifugal
2.     Precision casting
a)      Lost wax method
b)     Plaster moulds
c)      Mercast process
d)     Shell molding
3.     Moulds of wood, rubber paper etc.

   3)   Continuous casting
1.      Reciprocating moulds
2.      Draw methods
3.      Stationary moulds
4.      Direct sheet casting

Tools required:
    1.      A pattern
    2.      Molding box
    3.      Metal
    4.      Furnace
    5.      File

A pattern:

             A pattern is a model made of suitable material and is used for making to cavity in molding sand or other suitable mould materials. A pattern is defined as a model of casting, constructed in such a way that it can be used for forcing as mould in damp sand. The first step in making a casting is to prepare a model, known as a pattern, which differs in a number of respects from the resulting casting. Most patterns are made of wood because of its cheapness, ease of availibity, lightness, ease of obtaining smooth surface and preserving surface by applying coating of shellac, ability to be worked on easily. It has been said that a poor casting may be produced from a good pattern but a good casting will be made a poor pattern.





     The Mould:

               A mould is the container that has the cavity or cavities of the shape to be cast. Good casting cannot be produced without good mould. Mould may be of two types.
    1)     Permanent type
    2)     Temporary type

According to the sand there are various types of mould

     a)      Green sand mould
     b)     Dry sand mould
     c)      Loam sand mould
     d)     Core sand mould
     e)      Cemented bounded mould
     f)       Resin bounded sand mould
     g)      Skin dry sand mould etc.


            The mould must be strength enough to hold the weight of the metal and resist corrosive action of the rapidly flowing metal during pouring. The mould must generate a minimum amount of gas when filled with molten metal and must be constructed so that any gases formed can pass through the body of the mould itself. The necessary equipment that a mould being made are given below-



     a)      Molding board
     b)      Shovel
     c)      Riddle
     d)     Rammer
     e)      Bellows
     f)       Lifters
     g)      SW
     h)     Vent wire
     i)        Gate cutter

Tuesday, August 7, 2012

Make a pattern for moulding(part 2)

Discussion of Tools:


                              6. Divider:
It is one kind of marking tools consisting of two legs and a adjusting nut. We use it for drawing a circle on the surface of the timber.


                                              Figure: Divider




                               7. Steel Scale:
It is one of the most common marking tools. Wooden ruler is not comfortable to measure length. But steel scale is very much helpful to measure length or to draw a line.
                                               Figure: Steel scale




                        8. Tenon Saw:
For doing all small job we use a 10in or 12 in row, it is called tenon saw. The angle between the cutting edge and the surface of the job is 45ᵒ.
                                                Figure: Tenon Saw






                      9 . Working Place or Table:
It is like other table. But the difference here with the normal table is there is a wood or job holder in one side or two side of the table. We fixed the job in the holder and did our work very easily and smoothly.

                                   Figure: Working Table



                    10. Oil Stone:
Oil stone is used to sharp the edge of the chisel.




                                          Figure: Oil Stone




          11. Files:
The main function of a file is its plane or smooths the surface. To make the pattern we used two types of files in wood shop such as rough file and smooth file. Smooth file was used for better finishing.

                                               Figure: Files





Operation:


1.   We got the timber which supplied from the workshop: 6 × 3 × 3.
2.   By using a planer we planned the rough surface of the timber. Then we draw the top view and from view on the timber by using scale, pencil and divider.
3.   We used tenon saw to cut the outer surface of the timber. We also used chisel for cutting outer surface to gat required shape of the pattern.
4.   We used rough file and then smooth the surface of the pattern. And lastly for good finishing we used emery paper.
5.   After finishing these operations we got a nice pattern which is ready for casting.




Discussion:


          Pattern making is one of the most important things in doing casting. The pattern is a model made of suitable material and is used for making the cavity in moulding sand. The design should be as simple as possible to make the pattern. We were careful to make pattern so that the edge of the pattern will not broken down. Casting is very much important in production. Pattern making is the main operation for casting. This experiment will help us in future life for practical purpose.








Make a pattern for moulding(part 1)


Theory:

       The pattern is a model made of suitable material and is used for making the cavity in moulding sand or other suitable mould materials. It has been said that a poor casting may be produced from a good pattern, but a good casting will not be made from a poor pattern. Most patterns are made of wood because of its cheapner, case of availability, lightness, case of obtaining smooth surface and preserving surface by applying coating of shellac, ability to be worked on easily. To make a pattern we worked in workshop. The design should be as simple as possible to make the pattern.

Tools Required:

       We used the following tools for making a pattern.
1.     Smooth planer
2.     Tri-square
3.     Chisel
4.     Wooden mallet
5.     Divider
6.     Making gauge
7.     Steel scale
8.     Tenon saw
9.     Working place or table


Discussion of Tools:

                                 1. Smooth Planer:
We used planer for getting flat smooth surface of the pattern. The planer blade is very sharp.

                                                      Figure: planer






                                2. Tri-Square:

For setting out and testing all corners and ends which should be at right angle, we used a tri-square.


                                                      Figure: Tri-square



                            3. Chisel:
Some small and large firmer chisels are used in workshop. We used chisel for removing the wood from the timber.








                                                             Figure: chisel





                      4. Wooden Mallet:
It is only used in workshop. It is one kind of hammer but is made of wood. To remove the wood from the timber by using chisel, we used wooden mallet to give force on chisel.



                                                        Figure: Wooden Mallet



                    5. Marking Gauge:
It is one kind of marking tool which is used for making lines parallel to the edge of the job. It has a stem and head, usually made of beach and a marker. In setting it, the head is set to the required position, measured from the point of spur and the screw is partially tightened.



                                            Figure: Marking Gauge
